The following 200-301 questions are part of our Cisco 200-301 real exam questions full version. There are 970 in our 200-301 full version. All of our 200-301 real exam questions can guarantee you success in the first attempt. If you fail 200-301 exam with our Cisco 200-301 real exam questions, you will get full payment fee refund. Want to practice and study full verion of 200-301 real exam questions? Go now!

 Get 200-301 Full Version

Cisco 200-301 Exam Actual Questions

The questions for 200-301 were last updated on Feb 21,2025 .

Viewing page 1 out of 3 pages.

Viewing questions 1 out of 16 questions

Question#1

How does HSRP provide first hop redundancy?

A. It load-balances traffic by assigning the same metric value to more than one route to the same destination m the IP routing table.
B. It load-balances Layer 2 traffic along the path by flooding traffic out all interfaces configured with the same VLA
C. It forwards multiple packets to the same destination over different routed links n the data path.
D. It uses a shared virtual MAC and a virtual IP address to a group of routers that serve as the default gateway for hosts on a LA

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/ipapp_fhrp/configuration/xe-16/fhp-xe-16-book/fhp-hsrp-mgo.html

Question#2

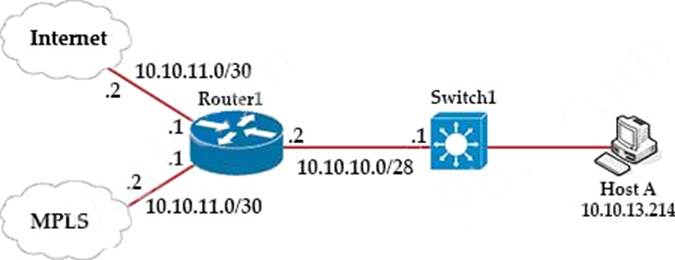

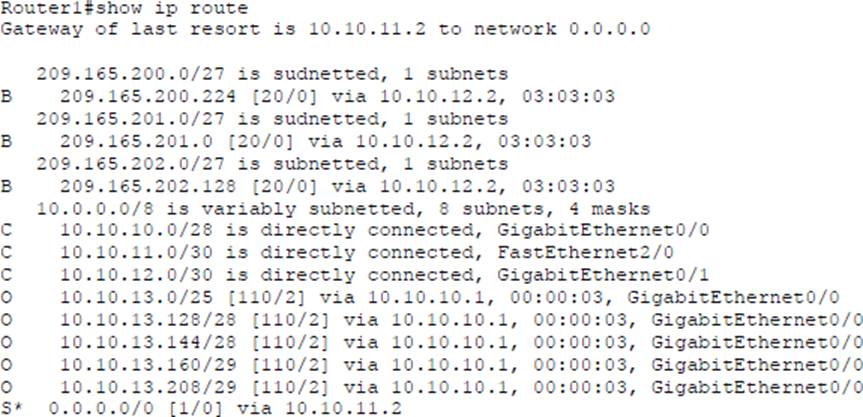

Refer to the exhibit.






Which prefix does Router 1 use for traffic to Host A?

A. 10.10.10.0/28
B. 10.10.13.0/25
C. 10.10.13.144/28
D. 10.10.13.208/29

Explanation:
Host A address fall within the address range. However, if more than one route to the same subnet exist (router will use the longest stick match, which match more specific route to the subnet). If there are route 10.10.13.192/26 and 10.10.13.208/29, the router will forward the packet to /29 rather than /28.

Question#3

Which type of address is the public IP address of a NAT device?

A. outside global
B. outsdwde local
C. inside global
D. insride local
E. outside public
F. inside public

Explanation:
NAT use four types of addresses:
* Inside local address -. The IP address assigned to a host on the inside network. The address is usually not an IP address assigned by the Internet Network Information Center (InterNIC) or service provider.
This address is likely to be an RFC 1918 private address.
* Inside global address - A legitimate IP address assigned by the InterNIC or service provider that represents one or more inside local IP addresses to the outside world.
* Outside local address -. The IP address of an outside host as it is known to the hosts on the inside network.
* Outside global address -. The IP address assigned to a host on the outside network. The owner of the host assigns this address.

Question#4

Which two must be met before SSH can operate normally on a Cisco IOS switch? (Choose two)

A. The switch must be running a k9 (crypto) IOS image.
B. The ip domain-name command must be configured on the switch.
C. IP routing must be enabled on the switch.
D. A console password must be configured on the switch.
E. Telnet must be disabled on the switch.

Explanation:
Reference: https://www.cisco.com/c/en/us/support/docs/security-vpn/secure-shell-ssh/4145-ssh.html

Question#5

Which type of wireless encryption is used for WPA2 in pre-shared key mode?

A. TKIP with RC4
B. RC4
C. AES-128
D. AES-256

Explanation:

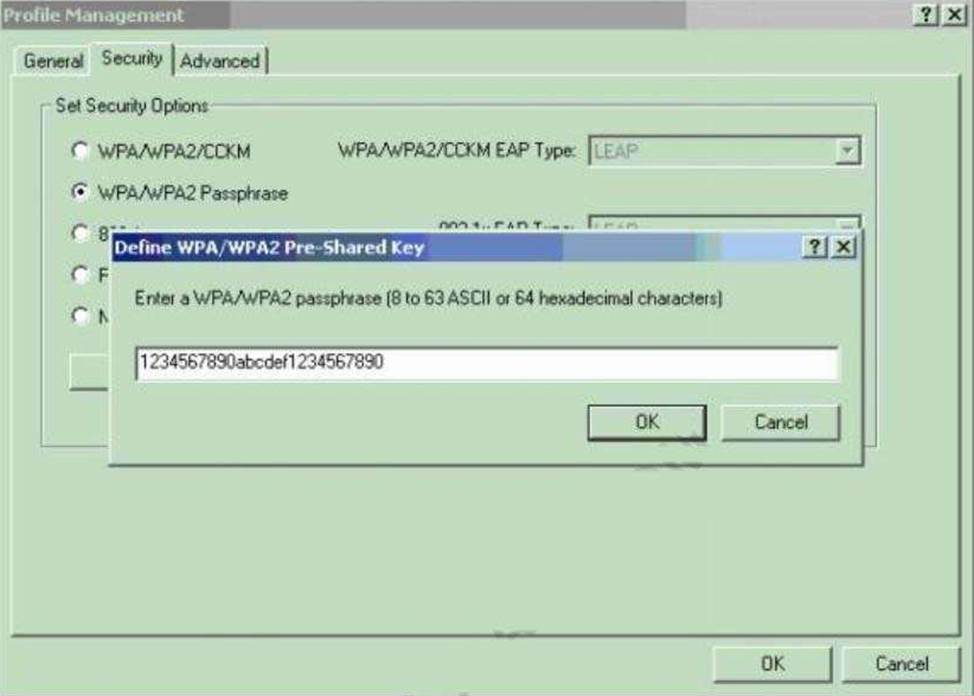

We can see in this picture we have to type 64 hexadecimal characters (256 bit) for the WPA2 passphrase so we can deduce the encryption is AES-256, not AES-128.



Reference: https://www.cisco.com/c/en/us/support/docs/wireless-mobility/wireless-lan-wlan/67134-wpa2-config.html
